Bronco 30H

Need to supersize? Meet THE heavyweight.

When you’ve got a project that requires a colossal-size segmental retaining wall ( SRW ), call for the Bronco 30H retaining wall system, a prefabricated modular block wall (PMBW) system from VERSA-LOK. Weighing in at 4,500 pounds and displaying 14 square feet of face area, the Bronco 30H system has the heft and coverage to tackle any job you can throw at it.

This heavyweight segmental system builds walls up to 10 feet tall without soil reinforcement, and it easily accommodates geogrid for taller walls. With its unique natural-stone appearance in an ashlar face, Bronco 30H is the most attractive big-block SRW system available.

Product and color availability might be limited in some regions. Contact your local dealer for more information.

The Bronco 30H retaining wall system revolutionizes the construction of supersize walls. Its near-vertical construction, variable bond and a minimum radius of 17 feet make the Bronco 30H system far more versatile than other comparable products. Bronco 30H builds walls up to 10 feet tall without soil reinforcement, making it ideal for projects with excavation constraints. And with a unique ashlar four-panel, natural-stone appearance, the Bronco 30H system is the most attractive random-pattern large-block SRW system available.

Traditional Installation

Bronco 30H wall units are wet-cast using approximately 1.25 cubic yards of concrete per unit. It’s installed in much the same way as traditional SRW systems. No concrete footings are required; all that’s needed is an 8-inch leveling pad of granular road-base material or lean concrete. Voids are filled with drainage aggregate.

No special tools are required for installation. Steel-cable “pick rings” are cast into the top and back of the unit for easy placement using appropriate lifting equipment. Alignment knobs molded into the top of units and channels molded into the bottom ensure correct near-vertical positioning and allow for tight, variable-bond construction. Cap units are designed to allow for landscaping to the face of the wall at the top. After installation, the natural-stone wall face may be stained for a permanent, virtually maintenance-free finish.

No longer do you have to choose between high performance and good looks in a supersize wall. Bronco 30H delivers both — with a kick.

Units

Bronco 30H Unit

Depth (in):45
Height (in):30
Face width (wide) (in):67.5
Face area (sq. ft.):14
Minimum radius(ft.):17
Maximum unreinforced height(ft.) :10
Maximum geogrid reinforced height:50+
Setback:"1"
Batter/Cant:1.9
Weight (lbs):4650
Weight (lbs) with aggregate fill:6415

Half Unit

Depth (in):45
Height (in):30
Face width (wide) (in):33.75
Face area (sq. ft.):7
Weight (lbs):2700
Weight (lbs) with aggregate fill:3208

Corner Cap Unit

Depth (in):33
Height (in):30
Face width (wide) (in):67.5
Weight (lbs):3330
Weight (lbs) with aggregate fill:4855

Cap Unit

Depth (in):45
Height (in):30
Face width (wide) (in):67.5
Face area (sq. ft.):14
Weight (lbs):3205
Weight (lbs) with aggregate fill:5845

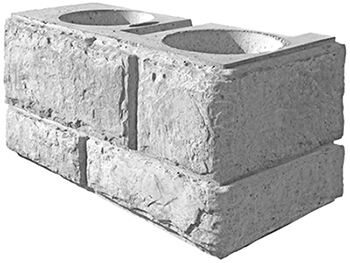

Corner Unit

Depth (in):33
Height (in):30
Face width (wide) (in):67.5
Face area (sq. ft.):21
Weight (lbs):3915
Weight (lbs) with aggregate fill:4875

Specifications

Photo Gallery

Made with Bronco 30H

Bronco 30H wall_Little Canada MN
idea book features-fence/railing,texture-non-weathered,product-bronco-30h
Big Block Wall
idea book features-tall walls,product-bronco-30h
Bronco 30H wall in Eau Claire, Wisconsin
texture-non-weathered,product-bronco-30h,idea book features-tall walls
Bronco 30H wall_Minneapolis MN
idea book features-fencing/barriers/guide rails,texture-non-weathered,product-bronco-30h,idea book features-tall walls
Bronco 18H and 30H
product-bronco-18h,product-bronco-30h,idea book features-tall walls,texture-non-weathered
Bronco-30H-straight-wall
texture-non-weathered,idea book features-tall walls,product-bronco-30h
Bronco 30H wall_Minneapolis_2
product-bronco-30h,texture-non-weathered,idea book features-tall walls
