Mosaic

Create eye-catching designs by combining VERSA-LOK Standard, Cobble and Accent units to form the random-patterned Mosaic Retaining Wall System. Attractive and durable, the Mosaic system uses a four-unit panel (10" x 24") — consisting of one Standard, one Cobble and two Accent units — giving each wall an interesting and visually arresting look and feel. Although they can create seemingly complex patterns, the simple four-unit Mosaic panels are just as easy to install as our Standard, Cobble or Accent retaining wall systems.

Contact your local dealer for information about product and color availability.

Case Study

Seven Bridges community

A master planned community near Kansas City named Seven Bridges wanted to showcase its gateway bridge with something extraordinary, so they built the arched vehicle and pedestrian bridge out of VERSA-LOK retaining wall units. The design was so successful it won the National Concrete Masonry Association’s 2008 “Award of Excellence.”

View

Case Study

Wilton Tall Wall

When the Town of Wilton, Maine, wanted to reclaim some land along a scenic stream to build a parking lot, it wanted the facility to blend in with its surroundings. Adding to that challenge was a massive retaining wall behind the parking lot that would tower more than 20 feet tall and span nearly 175 feet from end to end.

View

Case Study

Dante's View

The VERSA-LOK Mosaic retaining wall system helped achieve site stabilization, erosion control and improved visitor access and safety at a popular vista in Death Valley National Park.

View

Units

Four-unit Mosaic panel

Depth (in):12
Depth (mm):304.8
Height (in):10
Height (mm):254
Face width (wide) (in):24
Face width (wide) (mm):609.4
Face area (sq. ft.):1.6
Maximum unreinforced height(ft.) :3-4*
Maximum geogrid reinforced height:50+
Setback:1.5" per panel
Batter/Cant:8.5
Weight (lbs):200

Four-unit Mosaic panel (weathered)

Depth (in):12
Depth (mm):304.8
Height (in):10
Height (mm):254
Face width (wide) (in):24
Face width (wide) (mm):609.4
Face area (sq. ft.):1.6
Maximum unreinforced height(ft.) :3-4*
Maximum geogrid reinforced height:50+
Setback:1.5" per panel
Batter/Cant:8.5
Weight (lbs):200

*This is the maximum stable unreinforced height for 12-inch deep VERSA-LOK units in optimum conditions. Poor soils, additional loading, or slopes on top of a wall or bottom of a wall will reduce the maximum stable unreinforced height.

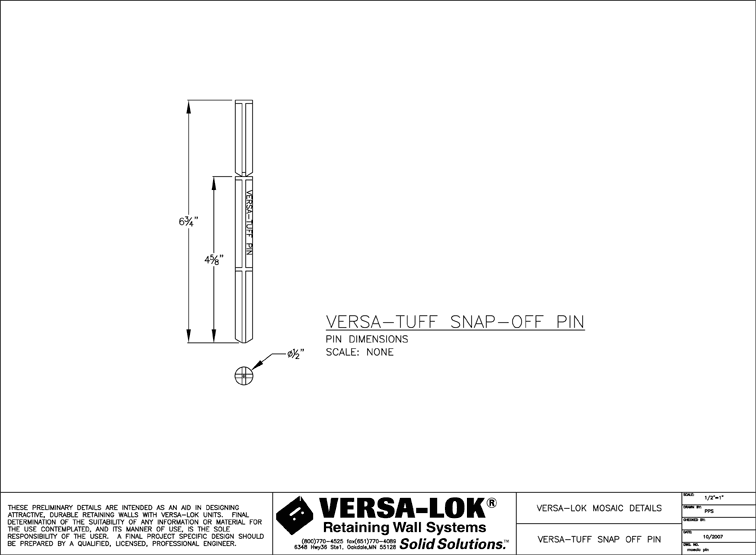

CAD Details

General

Columns

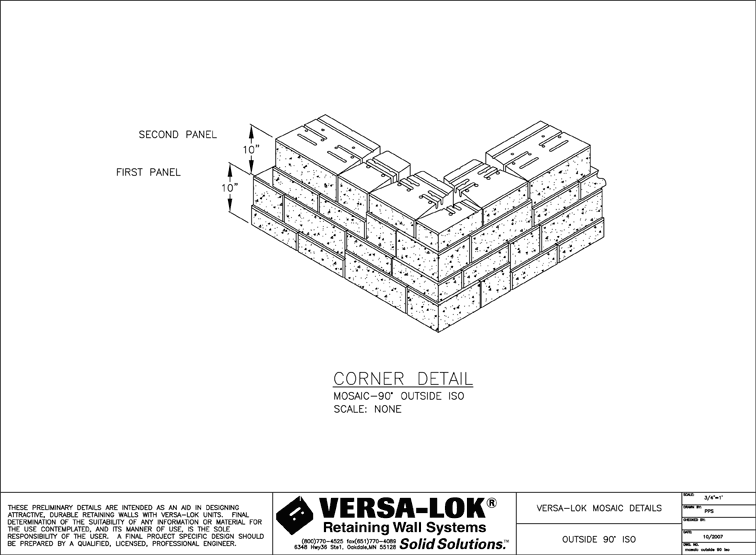

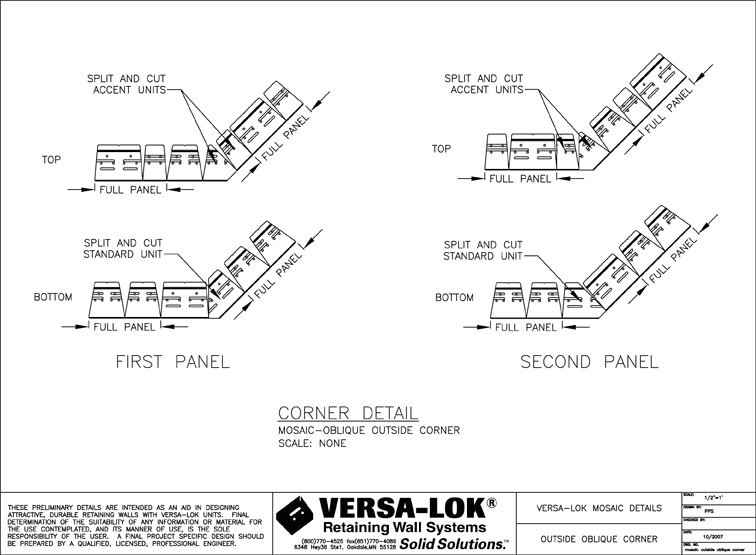

Curves & Corners

Fence & Railing

Stairs

Water applications

Specifications

Photo Gallery

Made with Mosaic

A Grand Stairway
idea book features-stairs,idea book features-tiered walls,texture-weathered,product-mosaic
Tiers and Steps to Courtyard
idea book features-stairs,idea book features-tiered walls,texture-non-weathered,product-mosaic
Interesting Courtyard Wall
idea book features-tiered walls,texture-non-weathered,product-mosaic,idea book features-terrace/tiers
Rustic Steps
idea book features-curves/corners,idea book features-raised patio,idea book features-columns,idea book features-stairs,idea book features-terrace/tiers,texture-weathered,product-standard,product-mosaic
Curving Wall with Sign
idea book features-tiered walls,idea book features-signage,texture-weathered,idea book features-fencing/barriers/guide rails,product-mosaic,idea book features-curves/corners
Raised Patio with Tiers
idea book features-raised patio,idea book features-terrace/tiers,idea book features-curves/corners,texture-weathered,product-mosaic
Culvert Wall and Facing
idea book features-public works,idea book features-tall walls,texture-weathered,product-mosaic
Grill Against a Matching Wall
idea book features-outdoor kitchen,texture-weathered,product-mosaic
Big Wall with Bump Out
idea book features-tall walls,texture-non-weathered,product-mosaic
Lakes of Maple Grove
idea book features-public works,idea book features-tall walls,texture-weathered,product-mosaic
Hardscaping a Hill
idea book features-curves/corners,idea book features-stairs,texture-weathered,product-mosaic
Planters by the Pool
idea book features-fencing/barriers/guide rails,idea book features-pool/water feature,idea book features-tiered walls,texture-weathered,product-mosaic

​Additional available literature

Mail Download
VERSA-Grid Information Sheet

VERSA-Grid Information Sheet

This information sheet presents an overview of VERSA-Grid soil-reinforcement geogrid.
VERSA-LOK SRW Capabilities Brochure

VERSA-LOK SRW Capabilities Brochure

This brochure provides an introduction to VERSA-LOK's solid, top-pinning retaining wall systems.
The Base Course DVD - VERSA-LOK Mosaic

The Base Course DVD - VERSA-LOK Mosaic

This DVD presents a step-by-step guide to VERSA-LOK Mosaic retaining wall construction. It includes both English and Spanish audio options. Also, the DVD includes printable PDF versions of the VERSA-LOK Mosaic Design and Installation Guidelines and all eight VERSA-LOK Technical Bulletins listed below. (A computer with a DVD drive is required to view and print the PDF literature.) Help us conserve paper—please request additional printed materials only as necessary.
VERSA-LOK Mosaic® Design & Installation Guidelines

VERSA-LOK Mosaic® Design & Installation Guidelines

This publication illustrates design and construction capabilities of VERSA-LOK Mosaic, Accent and Cobble Retaining Wall Systems. It includes design and construction fundamentals, basic wall design elements, and advanced wall features. You'll also find information on specifications, construction details, material estimating worksheets and VERSA-Grid® estimating charts.
VERSA-LOK Mosaic Field Guide

VERSA-LOK Mosaic Field Guide

The Mosaic Field Guide is a simple pocket reference for installing VERSA-LOK Mosaic retaining wall units.
Technical Bulletin #1-Shorelines, Waterways, and Retention Pond Protection

Technical Bulletin #1-Shorelines, Waterways, and Retention Pond Protection

Guidelines for using VERSA-LOK Retaining Wall Systems in a water environment. Foundation strength, scour, hydrostatic build up, and fines migration are addressed.

Technical Bulletin #5-Base Installation

Technical Bulletin #5-Base Installation

The components of a VERSA-LOK retaining wall base are explained, as is proper leveling pad construction.
Technical Bulletin #4-Caps

Technical Bulletin #4-Caps

Tips on capping straight and curved walls. Includes directions for using caps as treads when installing VERSA-LOK steps.
Technical Bulletin #7-Tiered Walls

Technical Bulletin #7-Tiered Walls

Considerations for construction of tiered retaining walls, including spacing requirements, are addressed.
Technical Bulletin #8-Fences, Railings, and Traffic Barriers

Technical Bulletin #8-Fences, Railings, and Traffic Barriers

Discusses top-of-the-wall barriers including fences, guide rails, concrete traffic barriers, and stair rails.
